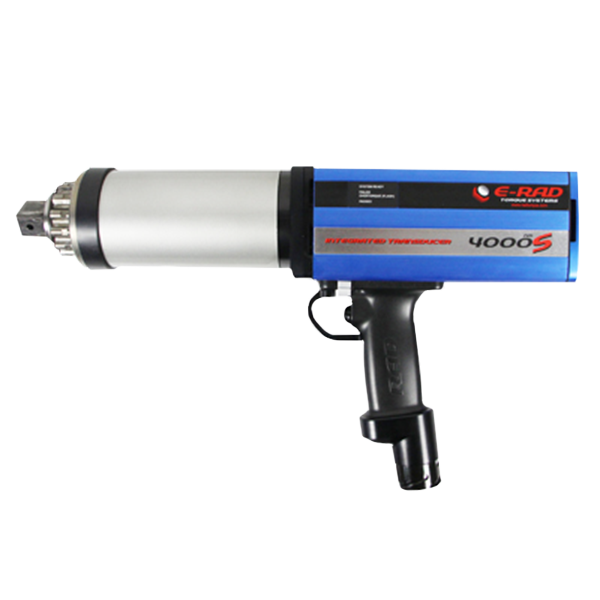

E-RAD BLU-S

Electronic Torque Wrench Tool Features:

Built-in transducer
Highly advanced data logging and tool management features
Password protection on three user levels: basic, intermediate, and advanced
Operator identification ensures traceability of each torque sequence performed
Capable of torque and angle bolting sequence
LED indicator lights (pass/fail) allowing for maximum accuracy
Controlled bolting repeatability of +/- 2% accuracy of transducer +/- 1%
Extremely low noise level at only 75dB

Torque Range: 100-11000 ft. lbs. (135-15000 Nm)

Product Sheet

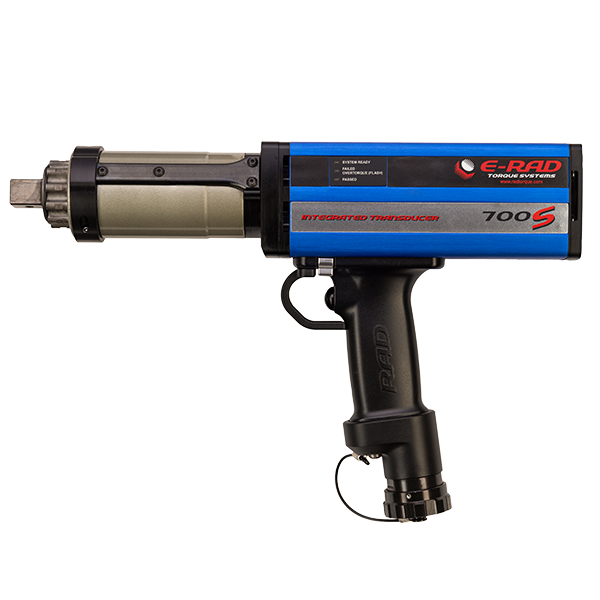

Electronic Torque Wrench with Built-in Transducer for Increased Accuracy

Introducing the newest addition to RAD’s E-RAD BLU line – the E-RAD BLU-S. This electronic torque wrench is equipped with a transducer for unparalleled accuracy and operator identification for traceability. Plus, it has pass/fail indicators on both sides and password protection for controlled and accurate torquing.

Torque Ranges: 100 – 11,000 ft. lbs. (135 – 15,000 Nm)

Data collection capability
LED indicator lights (pass/fail)
Push-button select torque
Lightweight and ergonomic pistol grip
Precision tool, +/- 3% accuracy

E-RAD BLU & Smart Socket™

This series is Bluetooth compatible, which can be used in conjunction with a RAD Smart Socket™ for field and transducer verification (available for purchase separately). This allows the E-RAD to be specifically calibrated on different joint types, as the E-RAD will follow the smart socket reading.

Learn about RAD Smart Sockets™

E-RAD BLU Touch Control Case

Our tools come with a Touch Control Case that lets you set torque and angle in single-digit increments. A clearly visible touchscreen provides the data you need in the field, all with a low noise level of only 75 db.

Learn about E-RAD BLU Control Case

E-RAD BLU-S MODEL CHART

Select Your Preferred Unit of Measurement for the Model Chart

Imperial Metric

Tool Model	Torque Range	RPM
E-RAD BLU-S 950-M E-RAD BLU-S 700	135-950 Nm 100-700 ft/lbs.	15 15
E-RAD BLU-S 3400-M COMP E-RAD BLU-S 2500 COMP	340-3400 Nm 250-2500 ft/lbs.	5 5
E-RAD BLU-S 4000-M E-RAD BLU-S 3000	675-4000 Nm 500-3000 ft/lbs.	5 5
E-RAD BLU-S 8000-M E-RAD BLU-S 6000	1385-8100 Nm 1000-6000 ft/lbs.	2.1 2.1
E-RAD BLU-S 10K-M E-RAD BLU-S 7500	2000-10000 Nm 1500-8000 ft/lbs.	1.5 1.5
E-RAD BLU-S 15K-M E-RAD BLU-S 11K	4050-15000 Nm 3000-11000 ft/lbs.	1.5 1.5

Tool Model

Torque Range

RPM

E-RAD BLU-S 950-M

E-RAD BLU-S 700

135-950 Nm

100-700 ft/lbs.

E-RAD BLU-S 3400-M COMP

E-RAD BLU-S 2500 COMP

340-3400 Nm

250-2500 ft/lbs.

E-RAD BLU-S 4000-M

E-RAD BLU-S 3000

675-4000 Nm

500-3000 ft/lbs.

E-RAD BLU-S 8000-M

E-RAD BLU-S 6000

1385-8100 Nm

1000-6000 ft/lbs.

2.1

E-RAD BLU-S 10K-M

E-RAD BLU-S 7500

2000-10000 Nm

1500-8000 ft/lbs.

1.5

*E-RAD BLU-S 15K-M

*E-RAD BLU-S 11K

4050-15000 Nm

3000-11000 ft/lbs.

1.5

Ergonomics

The E-RAD BLU-S tool line impresses with its ergonomic design, now with added torque transducer capabilities for increased accuracy without the need for heavy or cumbersome equipment.

Productivity

With the transducer in the nose of the gearbox, the E-RAD BLU-S monitors torque output in real-time to ensure the job is done accurately and efficiently from the start.
